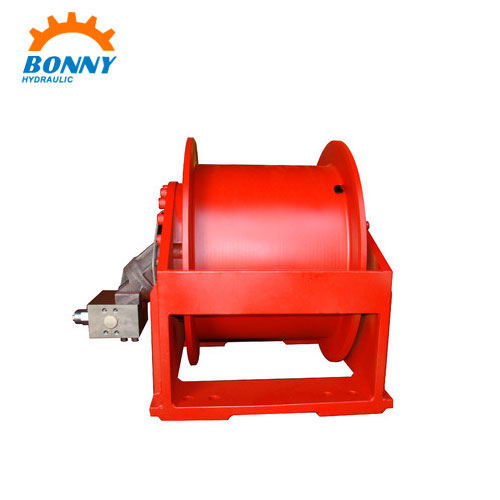

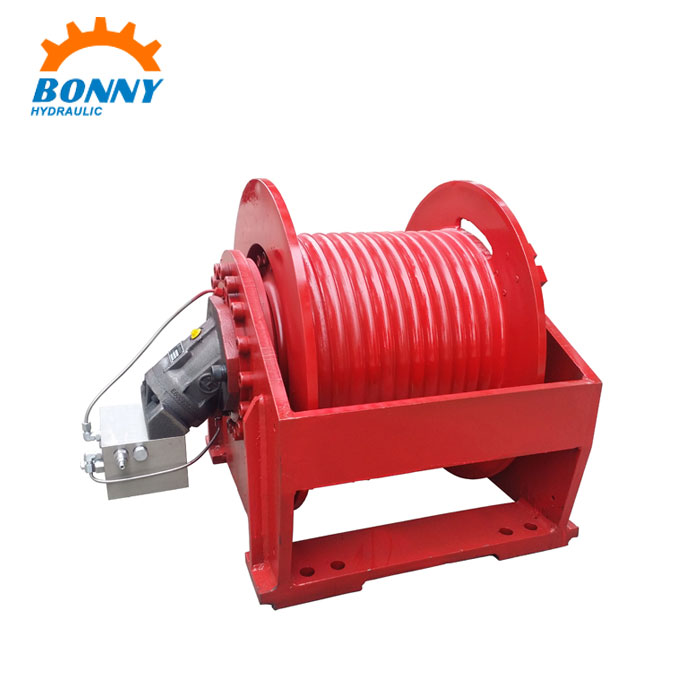

20 Ton High Speed Hydraulic Winch

AF series 20 Ton High Speed Hydraulic Winch are consisted of a variety of valve blocks with function of braking and single counterbalance valve, high speed hydraulic motor, Z type brake, planetary gearbox, drum and frame. The user only needs to provide a hydraulic power pack and directional valve. Due to the winches fitted with diversified valve block, it not only simplified the hydraulic system, but also improved the reliability of the winch. In addition, Industrial High Speed Hydraulic Winch features a high efficiency and power, low noise and energy consumption, and has a compact figure and good economic valve.

Application of 20 Ton High Speed Hydraulic Winch:

This types of Industrial High Speed Hydraulic Winch are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security.

Special features of 20 Ton High Speed Hydraulic Winch:

1. Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.

2. Normally closed friction type brake, high braking torque, safe and reliable operating.

3. Small volume, compact structure and high transmission efficiency.

4. Axial fixed or variable hydraulic motor with long life operating.

5. Mounting frame is available on request.

6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.

Technical parameters:

For the following specification in the table, it is for your reference. We can also manufacture the winch with pull force up to 60,000kgs based on your requirements.

Note: the above specification of winch is only for your reference. We can also design and manufacture the winch based on your requirements for different applications.
