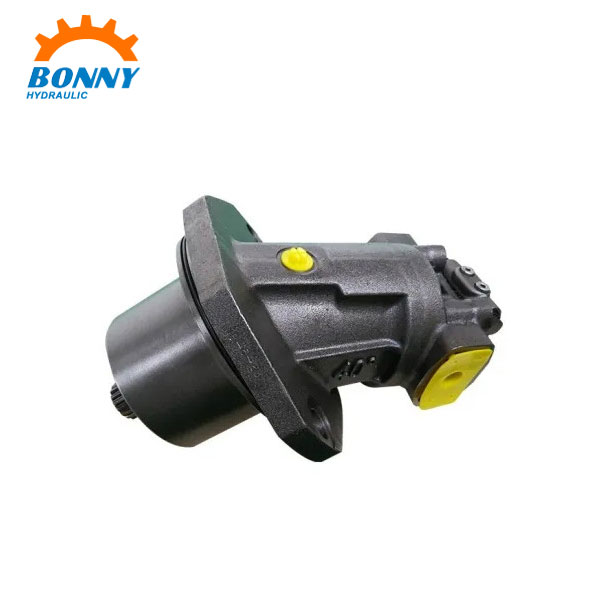

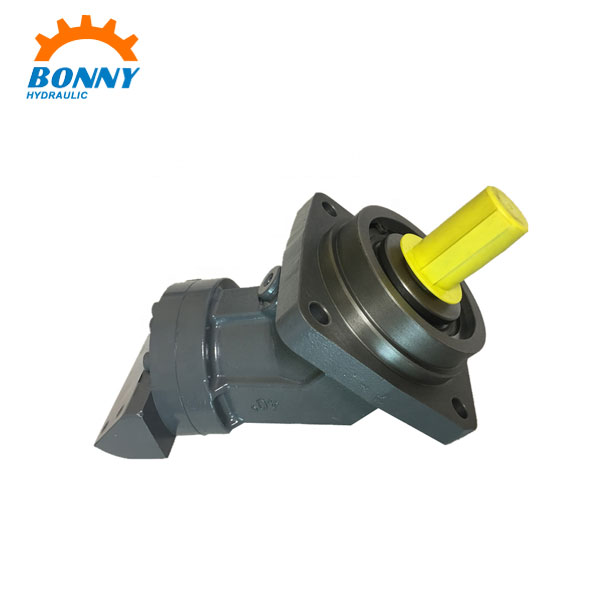

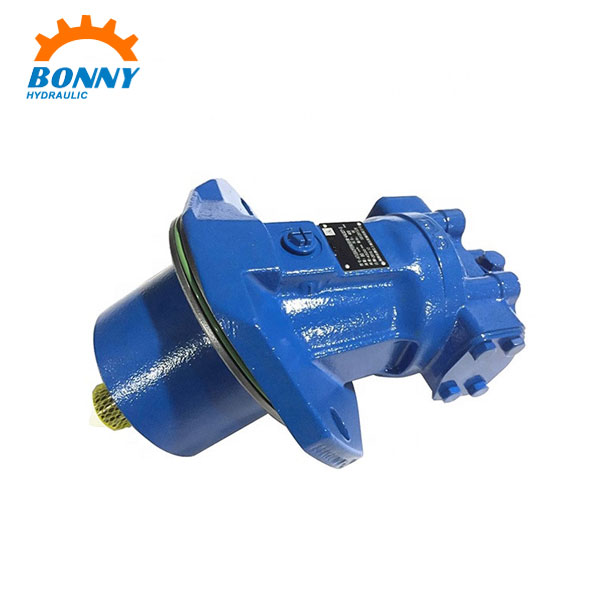

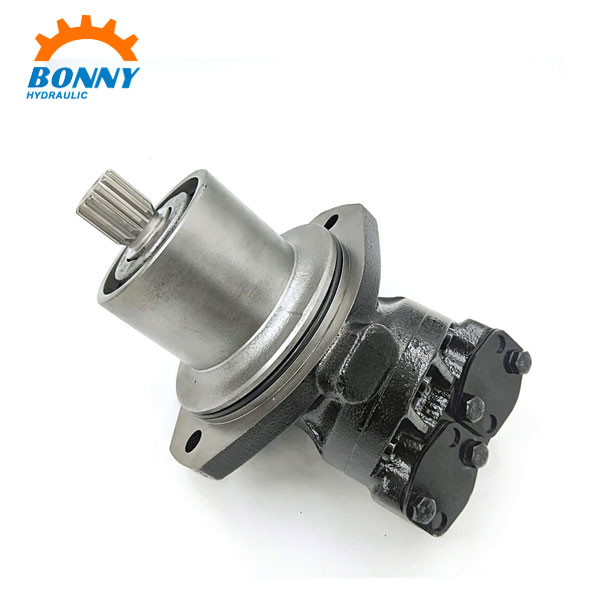

A2FE Series High Speed Hydraulic Motor

e produce A2FE Series High Speed Hydraulic Motor more than 10 years. It is equipped with a standard axial tapered piston rotary group of bent axis design. Hydrostatic plug-in motors are intended primarily for installation in mechanical gearboxes, e.g. track drive gear boxes.

Send Inquiry

Product Description

The fixed displacement plug-in motor A2FE Series High Speed Hydraulic Motor is equipped with a standard axial tapered piston rotary group of bent axis design. Hydrostatic plug-in motors are intended primarily for installation in mechanical gearboxes, e.g. track drive gear boxes. The design of the A2FE Series High Speed Hydraulic Motor with the mounting flange in the center of the housing allows it to be almost fully integrated into a mechanical gearbox to give an extremely compact unit.

The particular advantages of the plug-in motor over kit designs are complete unit; ready assembled and tested easy assembly integral plug-in to mechanical gearboxes no installation tolerances to consider

Features:

--Fixed plug-in motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits.

--Far-reaching integration in mechanical gearbox due to recessed mounting flange located in the center of the case (extremely space-saving construction)

--The output speed is dependent on the flow of the pump and the displacement of the motor

--The output torque increases with the pressure differential between the high-pressure and the low pressure side.

--Small dimensions

–High total efficiency

–Complete unit, ready assembled and tested

–Easy to install, simply plug into the mechanical gearbox

–No configuration specifications to be observed when installing

–Totally interchangeable with original Rexroth A2FE Series High Speed Hydraulic Motor.

Technical Parameter of A2FE Series High Speed Hydraulic Motor

Size	A2FE			28	32	45	56	63	80	90	107	125
Swept volume		Vg	cm3	28,1	32	45,6	56,1	63	80,4	90	106,7	125
Speed 1)		nmax	rpm	6300	6300	5600	5000	5000	4500	4500	4000	4000
Flow	at nmax	qVmax	l/min	176	201	255	280	315	360	405	427	500
Torque		Tmax	Nm	178	204	290	356	400	508	572	680	796
Weight (approx.)		m	kg	9,5	9,5	13,5	18	18	23	23	32	32
Size	A2FE			160	180	250	355
Swept volume		Vg	cm3	160,4	180	250	355
Speed 1)		nmax	rpm	3600	3600	2700	2240
Flow	at nmax	qVmax	l/min	577	648	675	795
Torque	p=350bar	Tmax	Nm	-	-	1393	1978
	p=400bar	Tmax	Nm	1016	1144	-	-
Weight (approx.)		m	kg	45	45	73	110
