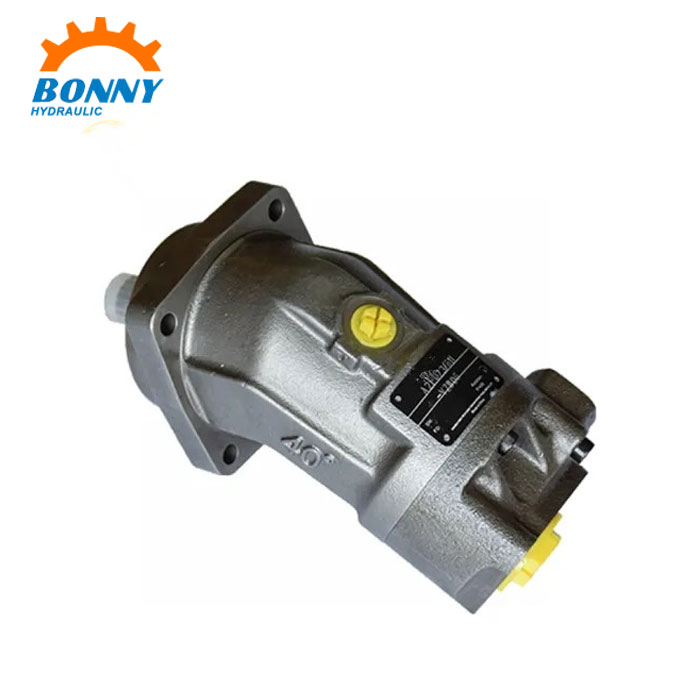

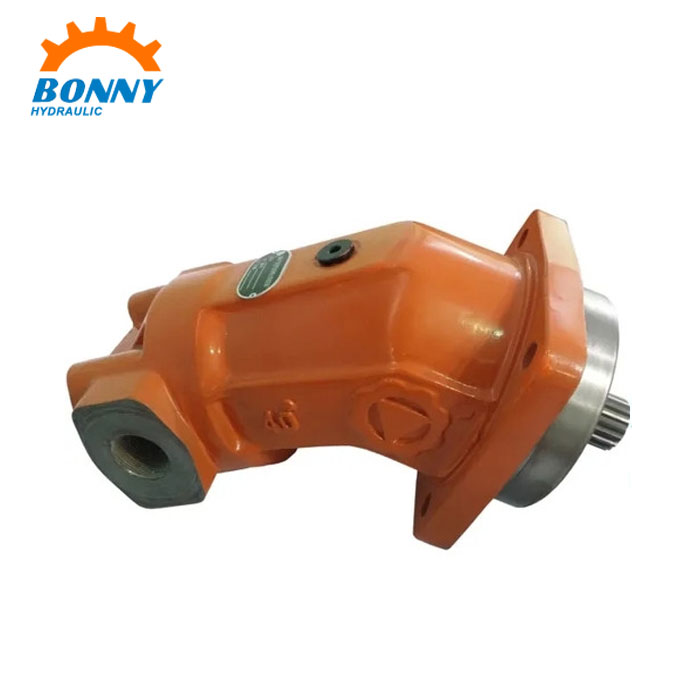

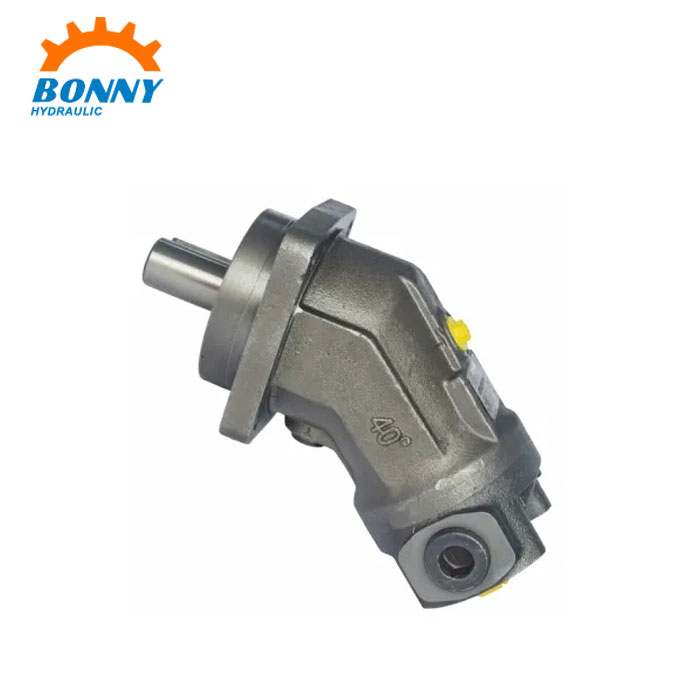

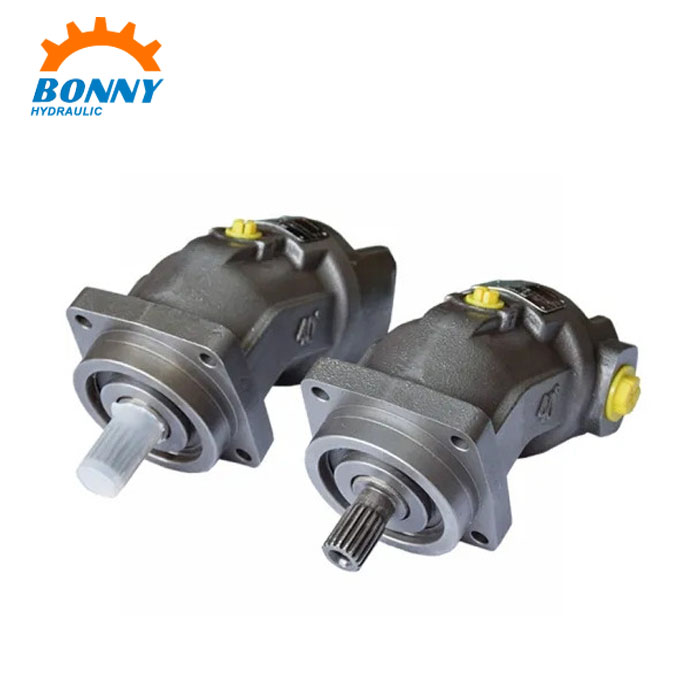

A2FM Bent Axis Hydraulic Motor

We are with 20 years’ experience in produce A2FM Bent Axis Hydraulic Motor. It can be completely interchanged with intermit A2FM Bent Axis Hydraulic Motor on performance and dimensions but with low cost and fast delivery. The use of Taiwan NAK oil seal is not easy to leak oil.

Send Inquiry

Product Description

A2FM Bent Axis Hydraulic Motor are bent axis axial piston hydraulic units with fixed displacement for open and closed circuit. A2FM Bent Axis Hydraulic Motor are available in ISO and SAE version. It is widely applied in mobile and industrial applications .Output speed depends on the flow capacity of the pump and the displacement of the motor. The torque increase with the pressure differential between the high and low pressure side and with increasing displacement. And it can be completely interchanged with Rexroth A2FM Bent Axis Hydraulic Motor. Also the performance parameters substitute approximates them too. And A2FM Bent Axis Hydraulic Motor can be used interchangeably with the Rexroth A2FM series due to the same dimensions. Very complete product range with all the type of Rexroth. Short delivery time with the quite competitive price. Common types are available in stock.

Main Features

1. Counterbalance valve can be fitted
2. Option: Integrated pressure relief valve
3. Option: Integrated or built - on flushing and boost pressure valves
4. Suitable for use as pump in closed circuits
5. Long - life bearings available (sizes 250 - 1000)
6. Totally interchangeable with original Rexroth A2FM series Hydraulic Motor

Technical parameters

Size	A2FM			5	10	12	16	23	28	32	45	56	63	80
Swept volume		Vg	cm3	4,93	10,3	12	16	22,9	28,1	32	45,6	56,1	63	80,4
Speed 1)		nmax	rpm	10000	8000	8000	8000	6300	6300	6300	5600	5000	5000	4500
Flow	at nmax	qVmax	l/min	49	82	96	128	144	176	201	255	280	315	360
Torque		Tmax	Nm	24,7	-	-	-	-	-	-	-	-	-	-
	p=400bar	Tmax	Nm	-	65	76	100	144	178	204	290	356	400	508
Weight (approx.)		m	kg	2,5	5,4	5,4	5,4	9,5	9,5	9,5	13,5	18	18	23

Size	A2FM			90	107	125	160	180	200	250	355	500	710	1000
Swept volume		Vg	cm3	90	106,7	125	160,4	180	200	250	355	500	710	1000
Speed 1)		nmax	rpm	4500	4000	4000	3600	3600	2750	2700	2240	2000	1600	1600
Flow	at nmax	qVmax	l/min	405	427	500	577	648	550	675	795	1000	1136	1600
Torque	p=350bar	Tmax	Nm	-	-	-	-	-	-	1393	1978	2785	3955	5570
	p=400bar	Tmax	Nm	572	680	796	1016	1144	1272	-	-	-	-	-
Weight (approx.)		m	kg	23	32	32	45	45	66	73	110	155	325	336
