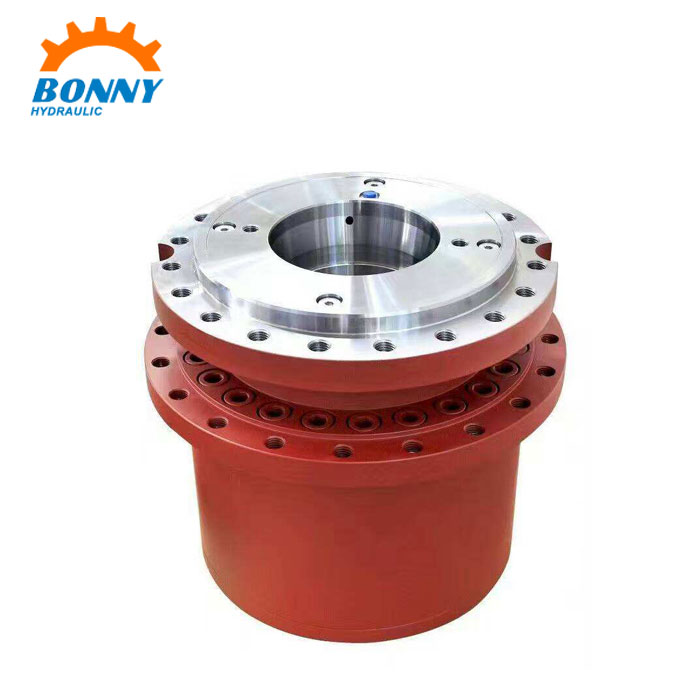

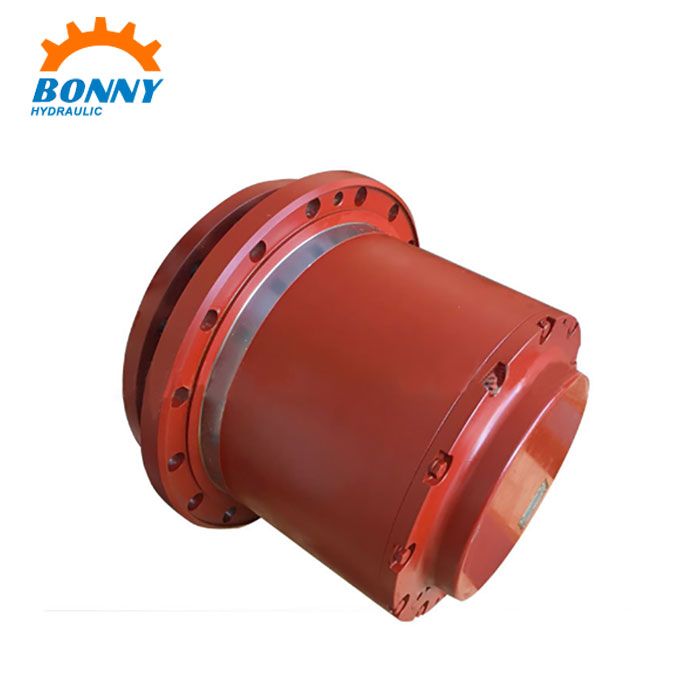

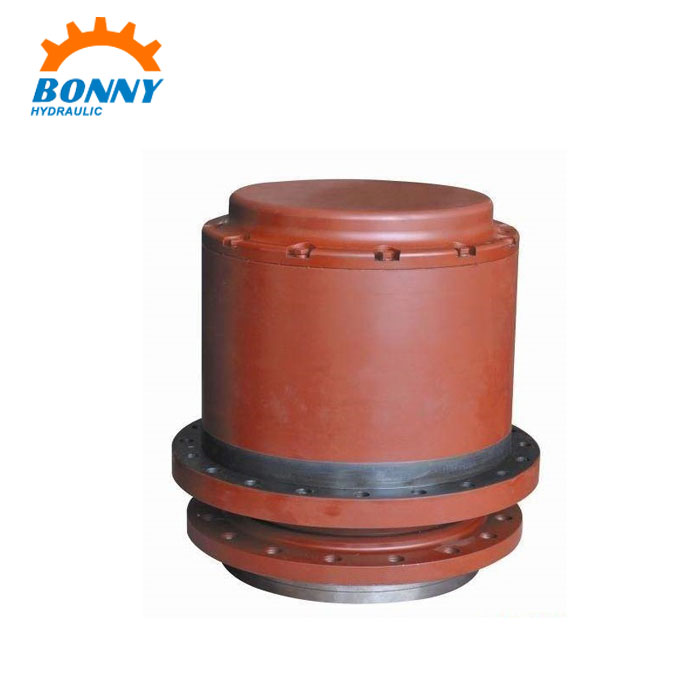

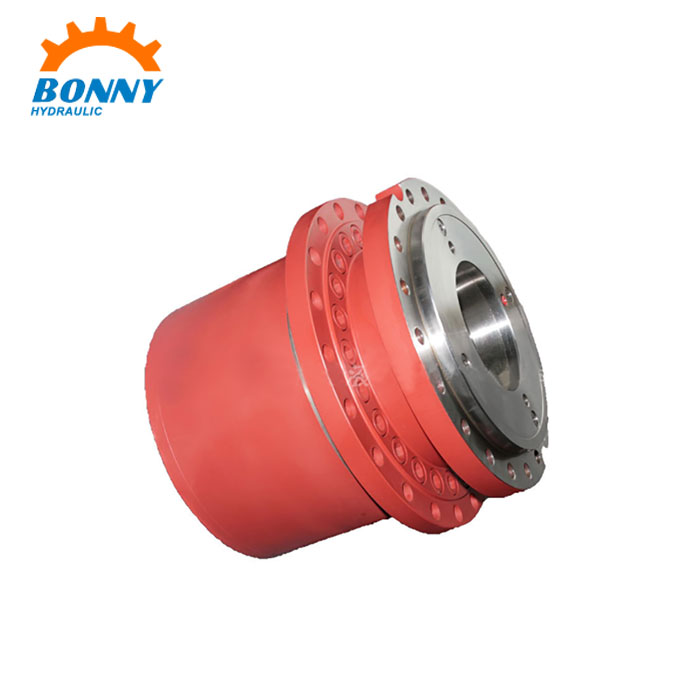

GFT160 Track Drive Gearbox

We produce GFT160 Track Drive Gearbox more than 10 years. It is an ideal driving component for wheel or track driving vehicles, and other moving equipment.

Send Inquiry

Product Description

GFT160 Track Drive Gearbox is an ideal driving component for wheel or track driving vehicles, and other moving equipment and widely applied in excavator, spreading machine, drill machine, mobile crusher, engineering machinery, mining, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.

Features of GFT160 track drive gearbox:

◆Integr. multi-disc parking brake

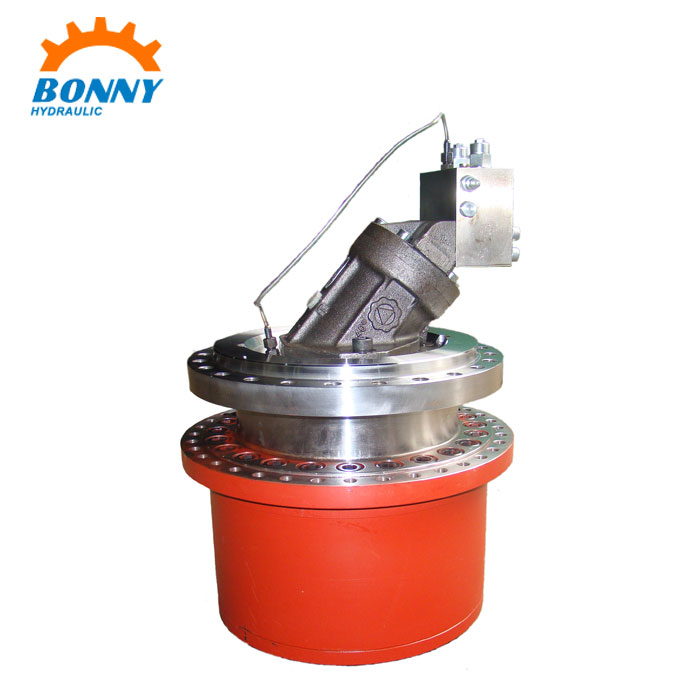

◆Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)

◆Interchangeable with Rexroth on performance and dimension.

◆More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and soon).

Technical parameters

Type/Version			GFT 7 T2	GFT 9 T2	GFT 13 T2	GFT 17 T2	GFT 17 T3	GFT 24 T3
Output Torque	T2 Max	Nm	7000	9000	13000	17000	17000	24000
Ratio		I	30.9-62.6	38.3-47.6	16.3-60.2	6.4-54	78-102.6	90.1-137.2
Hydraulic Motor			A10VM45	A10VE45	A2FE56 A6VE55 A10VE63 A10VM45	A2FE63 A6VE55	A2FE56 A6VE55	A2FE63 A10VE45
Weight without Motor (approx.)		kg	45	67	92	90	105	115
Type/Version			GFT 26 T3	GFT 36 T3	GFT 50 T3	GFT 60 T2	GFT 60 T3	GFT 80 T2
Output Torque	T2 Max	Nm	26000	36000	50000	60000	60000	80000
Ratio		I	42.9-62	67-161	66.3-146.4	23	94.8-197	55.5
Hydraulic Motor			A2FE90 A6VE80	A2FE90 A10VE80	A2FE125 A6VE107	A6VM220	A2VE125 A6VE107	A6VM220
Weight without Motor (approx.)		kg	155	170	220	205	260	570
Type/Version			GFT 80 T3	GFT 110 T3	GFT 160 T3	GFT 220 T3	GFT 330 T3
Output Torque, crane	T2 Max	Nm	8000	110000	160000	220000	330000
Ratio		I	76.7-185.4	95.8-215	161.8-251	97.7-365	168.9-302.4
Hydraulic Motor			A2FE180 A6VE160	A2FE180 A6VE160	A2FE180 A6VE160	A2FE180 A6VE160 A6VM355	A2FE355 A6VE250
Weight without Motor (approx.)		kg	405	505	680	1370	1250
