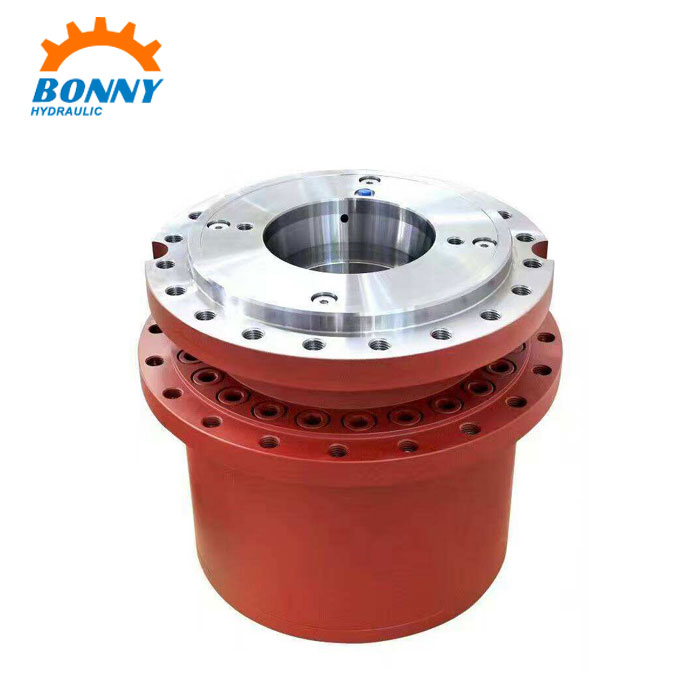

GFT24W3 Winch Drive Gearbox

We produce GFT24W3 Winch Drive Gearbox more than 10 years. It is an ideal driving component for hoisting mechanism. It has been widely applied in winding gear of truck crane, crawler crane, ship crane and harbor crane.

Send Inquiry

Product Description

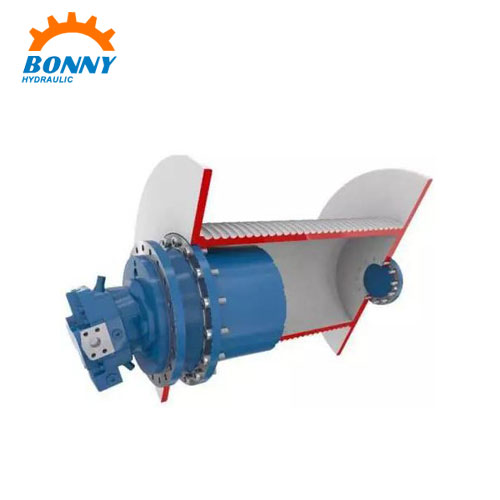

GFT24W3 Winch Drive Gearbox is an ideal driving component for hoisting mechanism. It has been widely applied in winding gear of truck crane, crawler crane, ship crane and harbor crane. Because of its compact structure, it can be installed in reel for saving space. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth GFT24W3 Winch Drive Gearbox.

Special Features of GFT24W3 Winch Drive Gearbox:
1. Compact two-, three- or four-stage planetary gearboxes
2. Cageless planetary gear bearing
3. Robust main bearing
4. Optimized seals
5. Integr. multi-disc parking brake
6. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7. Interchangeable with Rexroth on performance and dimension.
8. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).

Technical parameters

Model	Max.Output Trque (N.m)	Ratio (i)			Hydraulic Motor	Pull Force (KN)
GFT9W2	7000	25	32	63	A2FE23 A2FE28 A2FE32	40
GFT9W2	7000	51	63		A2FE23 A2FE28 A2FE32	40
GFT13W2	9500	32	36		A2FE28 A2FE32 A2FE45	50
GFT17W2	14000	37	45	54	A2FE45 A2FE56 A2FE63	67
GFT17W3	14000	77	88	102	A2FE45 A2FE56 A2FE63	74
GFT24W3	19000	90	102	120	A2FE45 A2FE56 A2FE63	99
GFT26W2	18000	42	50	62	A2FE45 A2FE56 A2FE63 A2FE80 A2FE90	84
GFT36W3	26000	67	79	100	A2FE45 A2FE56 A2FE63 A2FE80 A2FE90	118
GFT36W3	26000	116			A2FE45 A2FE56 A2FE63 A2FE80 A2FE90	118
GFT40W2	27000	35	41	48	A2FE45 A2FE56 A2FE63 A2FE80 A2FE90	108
GFT40W2	27000	59			A2FE45 A2FE56 A2FE63 A2FE80 A2FE90	108
GFT50W3	37500	84	91	99	A2FE45 A2FE56 A2FE63 A2FE80 A2FE90	150
GFT50W3	37500	125	146		A2FE45 A2FE56 A2FE63 A2FE80 A2FE90	150
GFT60W3	42500	86	94	105	A2FE80 A2FE90 A2FE107 A2FE125 A2FE160 A2FE180	164
GFT60W3	42500	119	139	169	A2FE80 A2FE90 A2FE107 A2FE125 A2FE160 A2FE180	164
GFT80W3	67000	76	99	110	A2FE107 A2FE125 A2FE160 A2FE180	231
GFT80W3	67000	126	149	185	A2FE107 A2FE125 A2FE160 A2FE180	231
GFT110W3	100000	95	114	128	A2FE107 A2FE125 A2FE160 A2FE180	300
GFT110W3	100000	147	173		A2FE107 A2FE125 A2FE160 A2FE180	300
GFT160W3	140000	147	173	185	A2FE107 A2FE125 A2FE160 A2FE180	373
GFT220W3	200000	188	246	293	A2FE107 A2FE125 A2FE160 A2FE180	471
GFT330W3	275000	168	209	252	A2FE125 A2FE160 A2FE180 A2FE250	595
GFT330W3	275000	302			A2FE125 A2FE160 A2FE180 A2FE250	595
