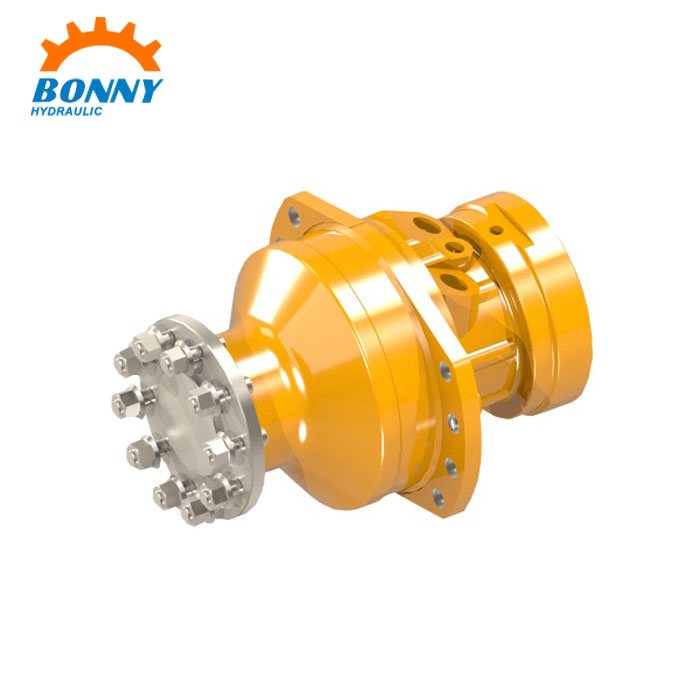

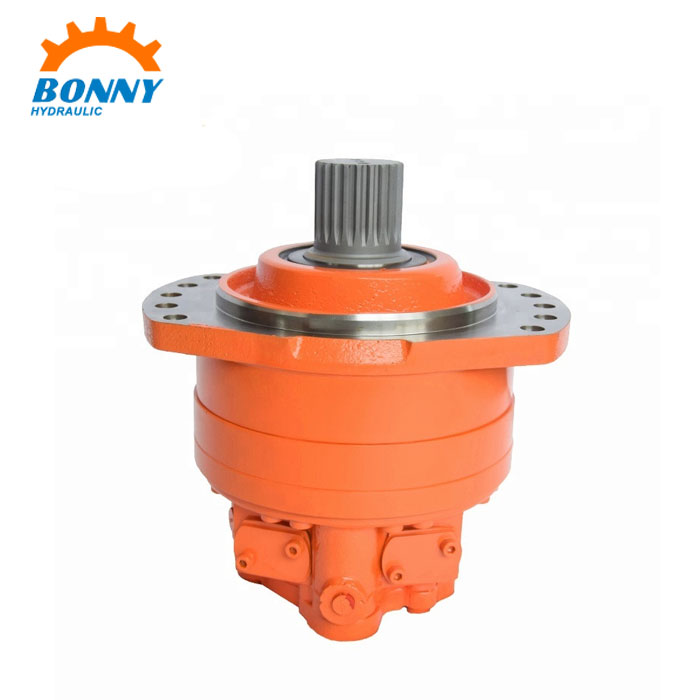

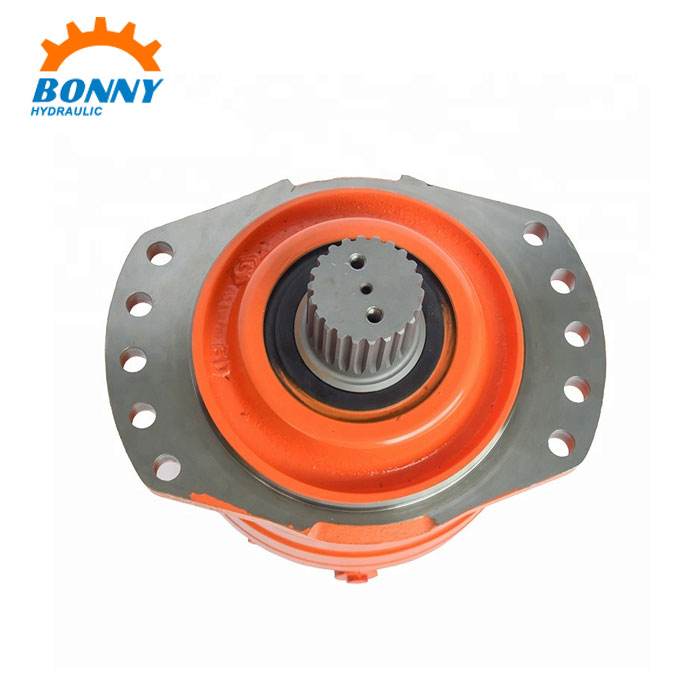

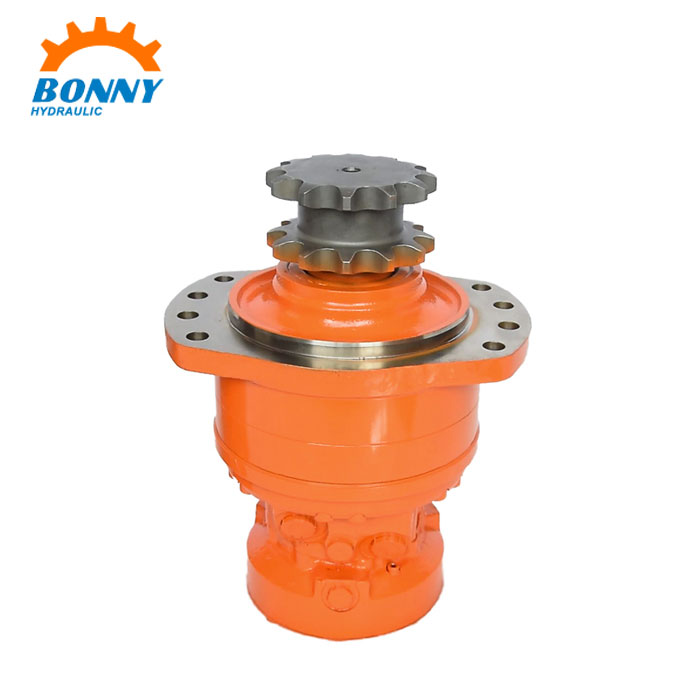

MS Series Hydraulic PisTon Motor

We produce MS Series Hydraulic PisTon Motor more than 20 years. It features for high mechanical efficiency and high volumetric efficiency. It can be interchanged with POCLAIN MS and MSE series hydraulic piston motor on performance and dimensions.

Send Inquiry

Product Description

MS Series Hydraulic PisTon Motor has such characteristics as: high mechanical efficiency and high volumetric efficiency, thus it is widely used in the travelling movement of those wheel vehicle and mechanical hydraulic power system of engineering plant, agricultural machinery, coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc.

Features:

1. Modular design and independent assortment on request

2. Supporting axial and radial loading.

3. Double displacement output

4. High working pressure, low speed stability and freewheel operation condition.

5.The mounting dimension can be interchanged with Poclain MS, MSE Series Hydraulic PisTon Motor and Bosh Rexroth MCR series wheel motor.

Technical parameters of MS Series Hydraulic PisTon Motor

Model	Displacement (ml/rpm)		Rated pressure (MPa)	Max pressure (MPa)	Rated pitch of strand (N.m) (whole displacement)	Speed range (rpm)	Max power (kw) (whole displacement)
Model	Whole displacement	Semi displacement	Rated pressure (MPa)	Max pressure (MPa)	Rated pitch of strand (N.m) (whole displacement)	Speed range (rpm)	Max power (kw) (whole displacement)
MS02	213		25	40	796	0-310	16
MS05	468	234	25	40	1749	0-200	25
MS08	780	390	25	40	2914	0-170	36
MS11	1048	524	25	40	3916	0-160	44
MS18	1747	873	25	40	6528	0-150	62
MS25	2498	1249	25	40	9334	0-130	80
MS35	3494	1747	25	40	13055	0-100	97
MS50	4996	2498	25	40	18667	0-100	123
MS83	8328	4164	25	40	31098	0-80	176
