4 Ton Hydraulic Winch

We produce 4 Ton Hydraulic Winch more than 20 years. It features for Small volume, compact structure and high transmission efficiency. It can be applied for overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.

Send Inquiry

Product Description

It is the type of 4 Ton Hydraulic Winch widely applied for difference kinds of crane. BG series 4 Ton Hydraulic Winch are widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.

Special Features of 4 Ton Hydraulic Winch

1. Floating type planetary gearbox, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Long life Danfoss hydraulic orbit motor
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.

Model	W.L.L. 1st layer	W.L.L. top layer	Rope Speed	Rope diam.	Capacity of Rope	Working Pressure	Max Supply Oil Flow
	kgf	kgf	m/min	mm	m	Mpa	L/min
BG500	500	380	63	6	67	14	40
BG800	800	680	54	8	53	14	50
BG1100	1100	870	41	8	53	14	50
BG1300	1300	1000	45	9	48	14	55
BG1500	1500	1200	42	10	60	21	55
BG2000	2000	1600	35	10	60	21	55
BG2500	2500	2000	52	12	52	21	100
BG2600	2600	2000	54	12	76	21	100
BG3200	3200	2500	44	14	66	21	100
BG3600	3600	2800	40	14	66	21	100
BG4500	4500	3500	36	15	89	21	110
BG5700	5700	4500	26	16	102	21	120

For more products about BG Series 4 Ton Hydraulic Winch, please download our catalogue or contact us!
Meanwhile, we can design and manufacture it on request.

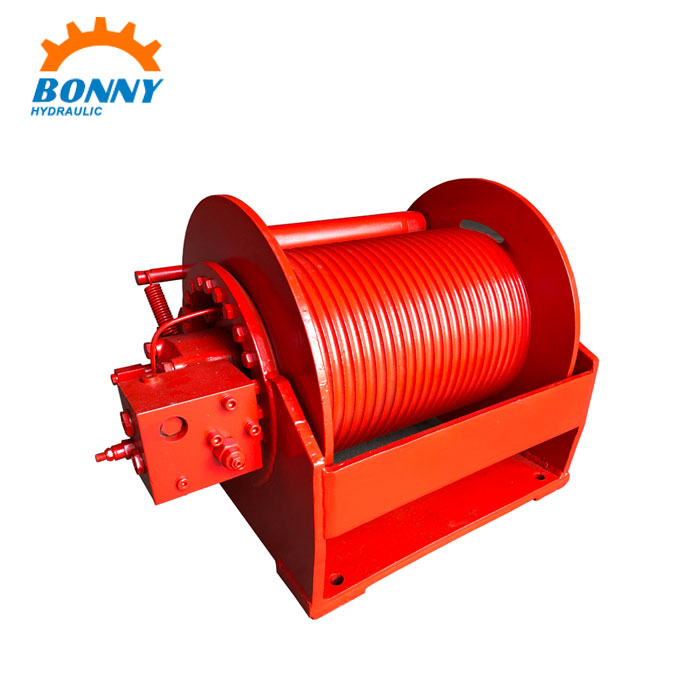

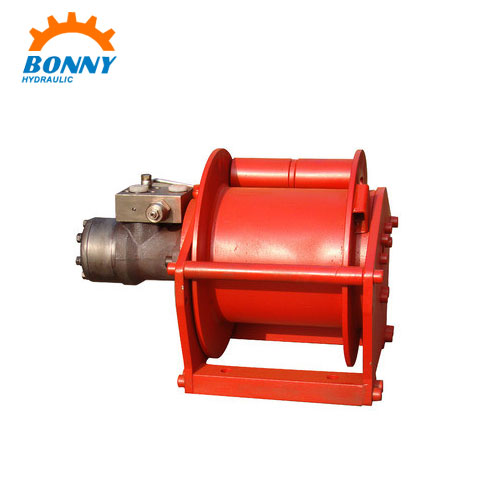

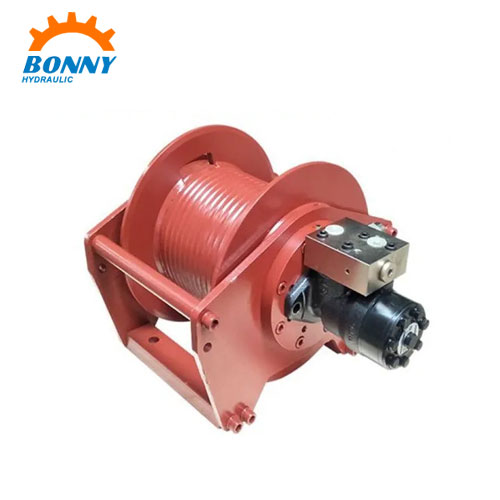

Detail of 4 Ton Hydraulic Winch
